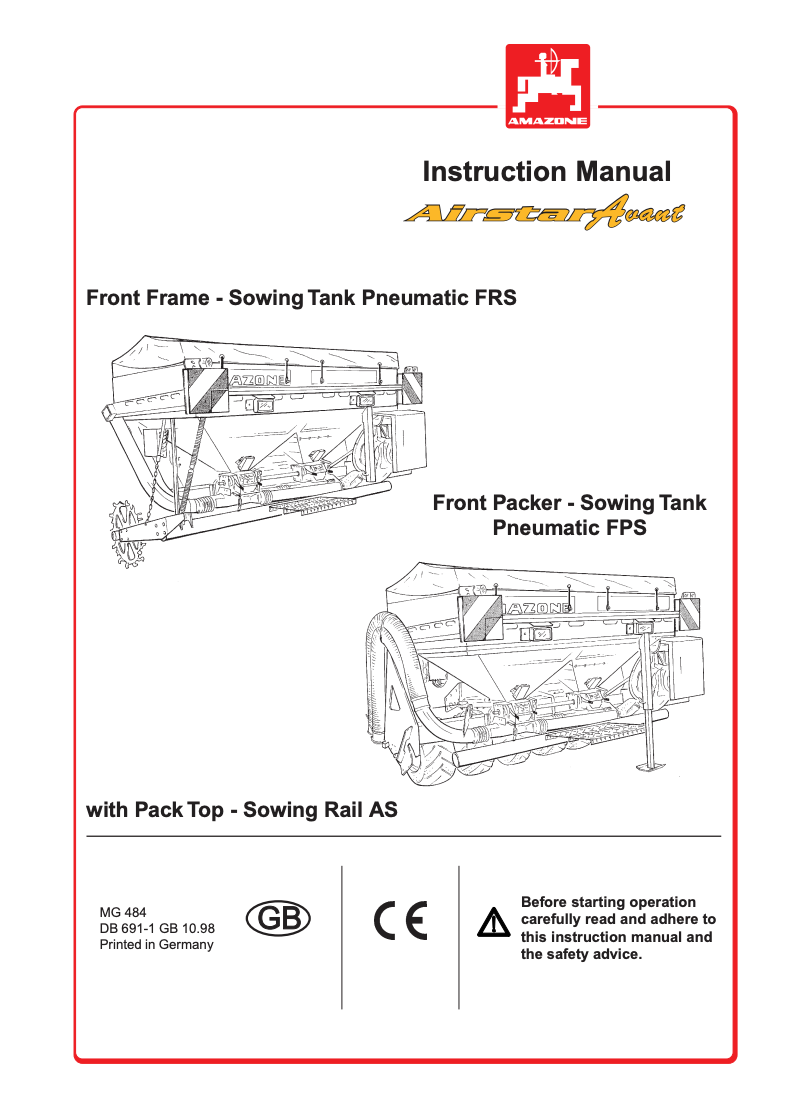

Amazone Airstar Avant MG 484 FRS/FPS Front Sowing Tank & AS Sowing Module Manual (PDF)
Amazone Airstar Avant MG 484 FRS/FPS Front Sowing Tank & AS Sowing Module Manual (PDF)
Couldn't load pickup availability
This is the official instruction manual for the Amazone Airstar Avant MG 484 system, covering the front-mounted sowing tanks (FRS/FPS) and the pack top sowing modules (AS series).
The manual provides comprehensive guidance for the operation, calibration, servicing, and maintenance of the Amazone Airstar Avant front seed tanks and sowing rail modules. It is essential reading for ensuring safe and efficient usage in the field.
What the manual is for:
This manual is for the Amazone front sowing tank system, specifically the pneumatic FRS and FPS units, and the AS pack top sowing modules. These are designed to meter and sow a wide range of seeds in combination with soil tillage equipment.
What you’ll learn:
- Initial setup and field preparation for both FRS and FPS systems
- Hydraulic and Diesel-powered blower fan operation
- Metering unit calibration and gearbox setting for accurate seed rates
- How to use the AMADOS control system (optional)
- Seed tank filling, emptying, and seed level monitoring
- Mounting procedures for the pack top sowing rail on various rollers
- Creating tramlines, using track markers, and following harrow setup
- Maintenance, servicing intervals, and safety precautions
Who it’s for:
This manual is ideal for farmers, agricultural contractors, and machinery mechanics operating or maintaining Amazone seed drilling equipment.
Covered models and equipment:
FRS Front Frame Sowing Tanks:
- FRS 1 – 1 metering unit
- FRS 2 – 2 metering units
FPS Front Packer Sowing Tanks:
- FPS 1 – 1 metering unit
- FPS 2 – 2 metering units
AS Pack Top Sowing Modules:
- AS 302 – 3.0m width
- AS 402 – 4.0m width
- AS 452 – 4.5m width
- AS 602 – 6.0m width
Accessories and operating options covered:
- Hydraulic or Diesel engine blower fan drive
- Optional AMADOS remote control system and tramlining module
- Seed metering wheels for fine and coarse seeds
- Track markers, following harrow, calibration crank, and seed level sensors
- Compatibility with packer rollers (tyre, wedge ring, tooth types)
This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
