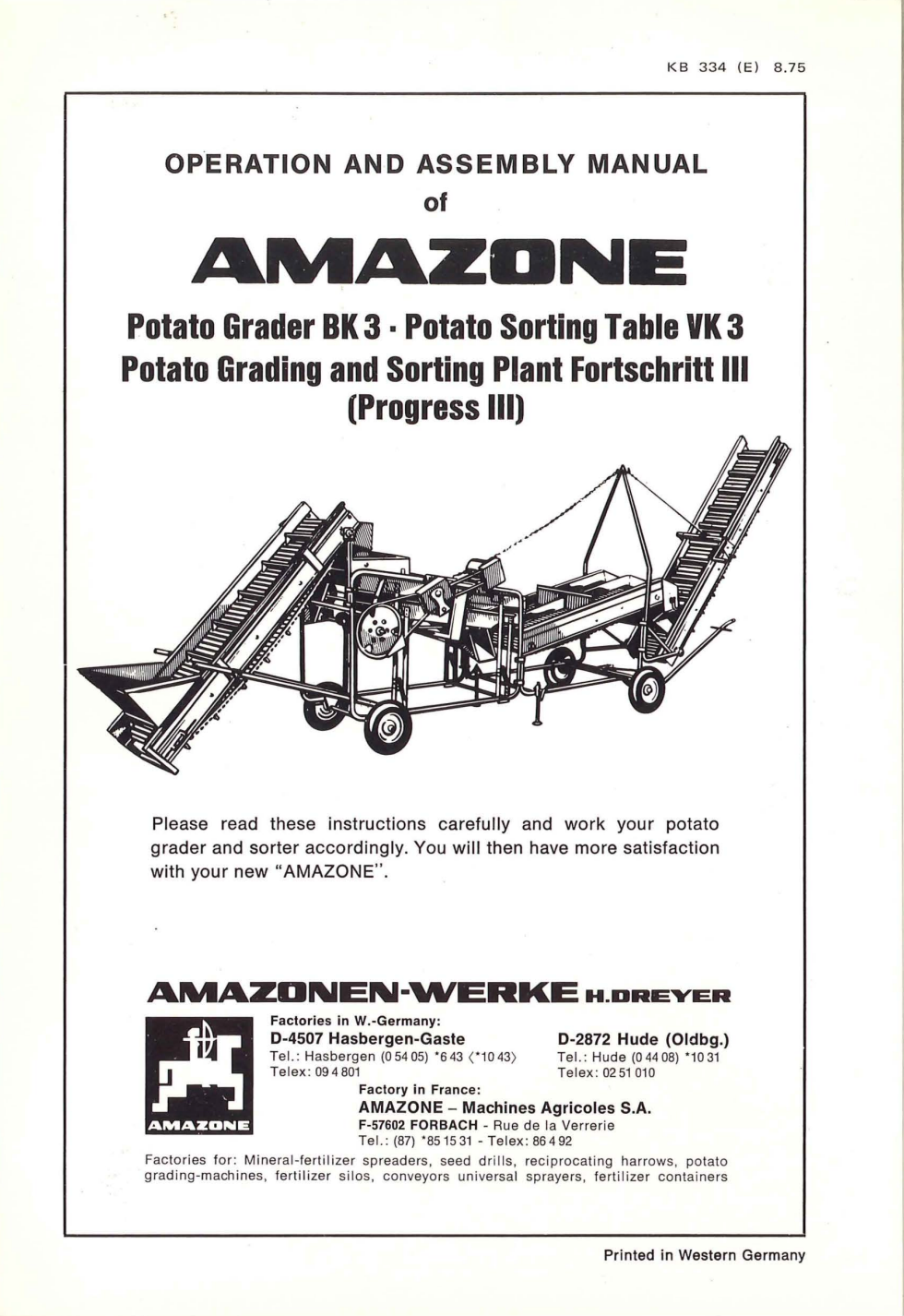

Amazone BK 3 Potato Grader & Fortschritt III Sorting Table Manual (KB 334)

This comprehensive operating manual covers the Amazone BK 3 Potato Grader and the VK 3 Sorting Table, also known together as the Fortschritt III Potato Grading and Sorting Plant. Produced by Amazone-Werke H. Dreyer in Germany, this equipment is designed for farmers, agricultural contractors, and machinery operators handling high volumes of potatoes.

The manual provides detailed instructions on setup, operation, adjustment, maintenance, and troubleshooting of the Amazone BK 3 grader and its accessories. It is essential reading for those responsible for keeping these machines running efficiently in working environments.

Inside, you’ll find guidance on:

• Initial machine receipt and inspection
• Step-by-step operating instructions
• How to fit and calibrate grading riddles
• Grading potatoes into up to four sizes
• Attaching and using side outlets for oversize and rotten potatoes
• Installing the VK 3 sorting table onto the BK 3 grader
• Adding optional equipment such as the stepless variable speed drive and knuckle-steering wheel system
• Operating feeding belts (ZB 22, ZBS 22) and loading belts (LB 20, LBS 20)
• Detailed belt replacement and tensioning procedures
• Regular maintenance and lubrication routines

The manual also includes diagrams, figures, and installation instructions for various accessories and optional configurations, ensuring compatibility with rubber or steel wheels, motor setups, and swivel-mounted belts.

Suitable for use not only with potatoes but also with carrots, onions, beets, and other similar crops, the Amazone BK 3 and Fortschritt III are versatile grading machines designed for serious agricultural operations.

Models Covered:

• Amazone BK 3 Potato Grader
• VK 3 Sorting Table
• Fortschritt III (combined grading and sorting system)
• Feeding Belt ZB 22 and ZBS 22
• Loading Belt LB 20 and LBS 20

This manual is ideal for farmers, agricultural mechanics, workshop engineers, and machinery owners who want to ensure proper usage and care of their Amazone equipment.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
