Amazone JET1200 Assembly & Maintenance Manual (DB438)

This original manual provides detailed assembly and maintenance instructions for the Amazone JET1200 fertiliser spreader. Designed specifically for agricultural professionals, this manual is essential for understanding the correct setup, adjustment, and servicing of the JET1200 to ensure optimal performance in the field.

The manual covers a wide range of critical mechanical components, including:

• Free-clutch shaft removal and installation
• Hydraulic ram disassembly
• Rear flange bearing adjustments
• Spread rate adjustment unit (eccentric shaft) assembly
• Metering shaft removal and installation
• Replacement and tensioning of drive belts and chains
• Injector sluice disassembly and sealing
• Shutter on/off control calibration

This manual is intended for use by farmers, agricultural engineers, contractors, and mechanics who operate or maintain Amazone fertiliser spreaders. It includes step-by-step guidance for replacing worn components, aligning moving parts, and ensuring accurate spread rate settings.

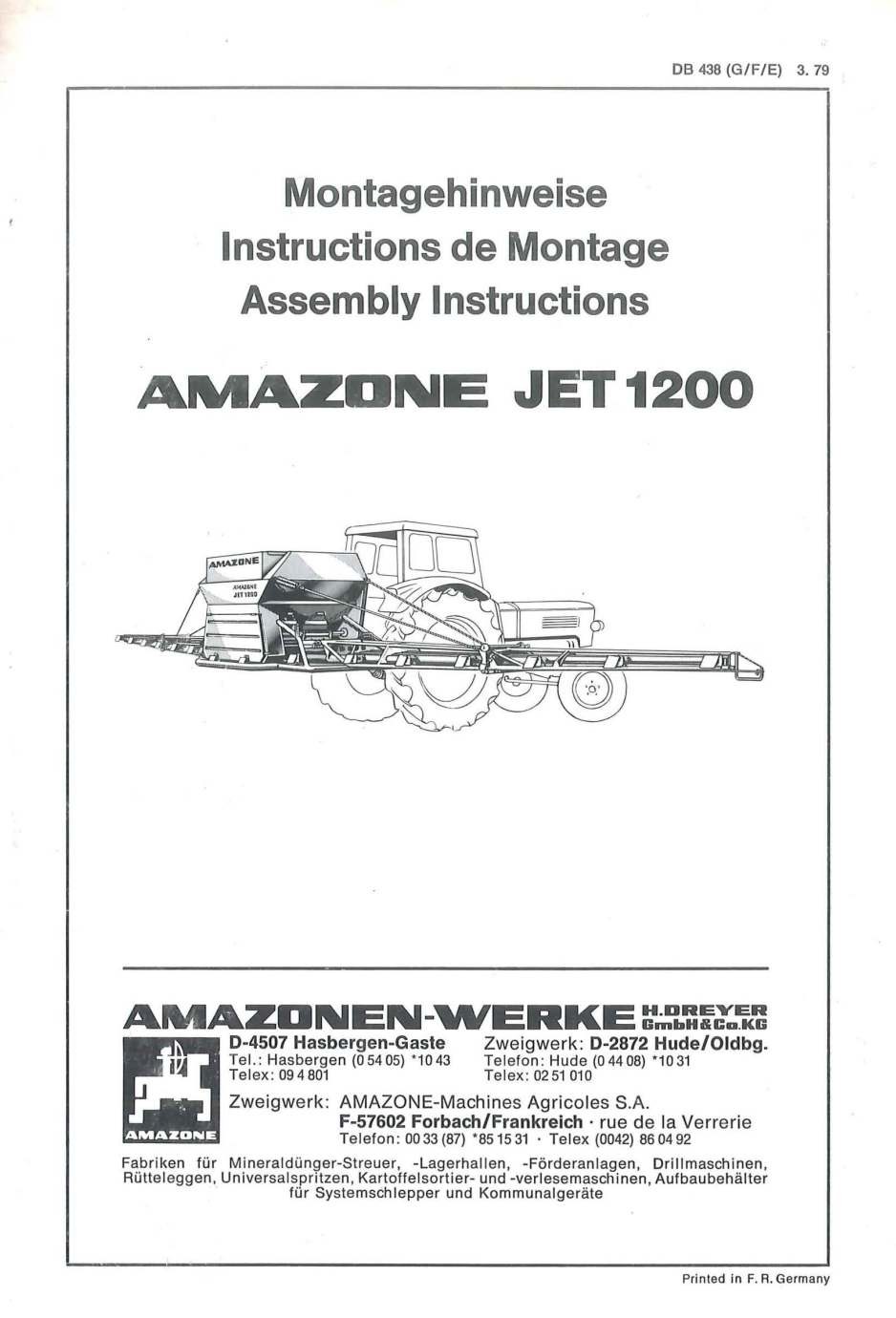

It is specifically for the Amazone JET1200 model, referenced as DB438. All procedures are illustrated and annotated with clear part numbers and mechanical drawings to support proper maintenance and setup.

While this guide focuses on the JET1200, it also touches on related accessories such as hydraulic rams, metering wheels, injector sluices, and V-belts. Optional conditions such as working direction and belt alignment are also explained in detail, ensuring that operators don’t overlook key adjustments.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
