Amazone MG 724 Micro Granular Spreader Instruction Manual – For ED 01 Airplanters

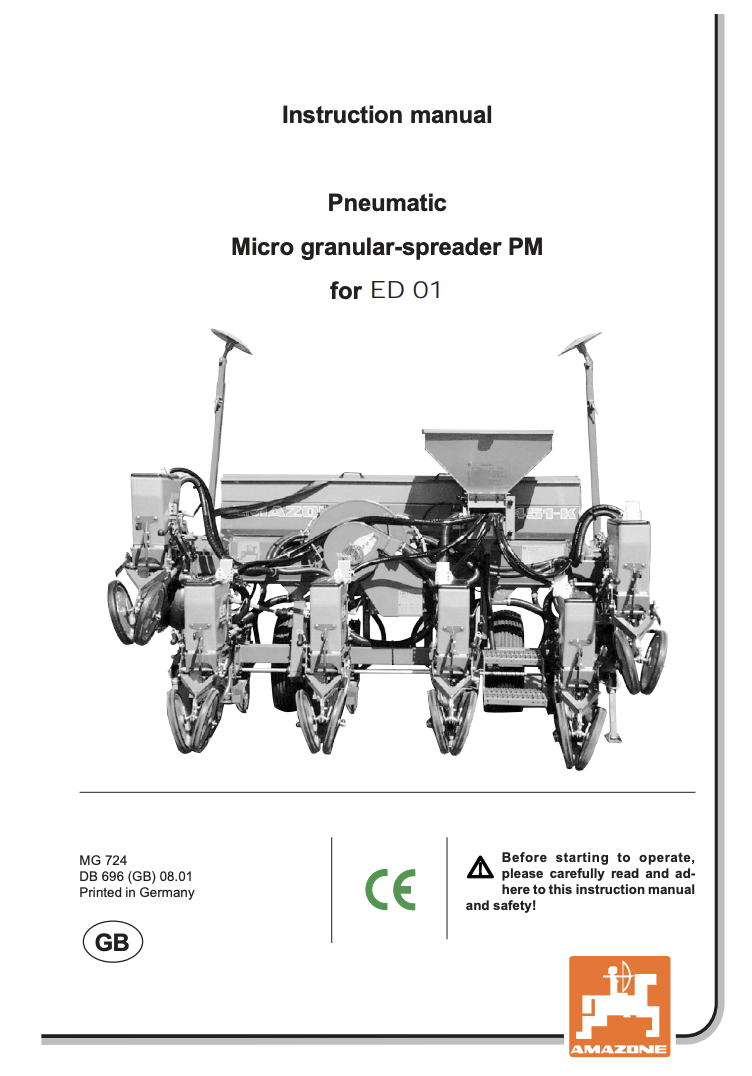

Amazone MG 724 Micro Granular Spreader Manual

This official instruction manual covers the Amazone MG 724 Pneumatic Micro Granular Spreader (System Sepeba) designed for the ED 01 range of Amazone air seeders. It is a comprehensive guide intended to assist users in the correct and safe setup, operation, calibration, and servicing of the microgranular application system.

What this manual is for:
This manual is specifically for the pneumatic micro granular spreader PM, a precision applicator used with Amazone ED 301, ED 451, and ED 451-K airplanters. It is intended for the controlled delivery of plant protection agents, including insecticides, herbicides, and helicides (slug pellets), directly into the soil via the sowing coulter.

What you will learn:

• Setup and correct mounting of the micro granular spreader on compatible Amazone air seeders
• Calibration and adjustment of application rates using setting charts and chain wheel combinations
• Detailed procedures for filling, emptying, and checking hopper levels
• Conducting accurate calibration tests for specific application rates and substances
• Maintenance, fault prevention, and safety protocols
• Best practices for operating in headlands and varying field conditions

Who this manual is for:
This manual is essential for farmers, agricultural contractors, and machinery technicians operating or servicing Amazone ED 01 airplanters equipped with the PM micro granular spreader. It’s ideal for anyone needing to understand or troubleshoot granular application systems.

Covered equipment variations:

• PM-IN1/4, PM-IN1/5, PM-IN1/6 – for insecticide application (4-, 5-, and 6-row models)
• PM-HL1/4, PM-HL1/5, PM-HL1/6 – for helicide (slug pellet) application (4-, 5-, and 6-row models)

Key accessories and components discussed:

• Metering shafts and wheels
• Hopper units (50L capacity)
• Track marker integration and auto shut-off mechanism
• Transmission gear pairing for accurate dosage control

Optional operating scenarios addressed:
The manual covers adjustments for non-standard application rates, changes in row spacing, varied working widths, and differing field layouts. It includes procedures for adapting the metering system under field-specific conditions.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
