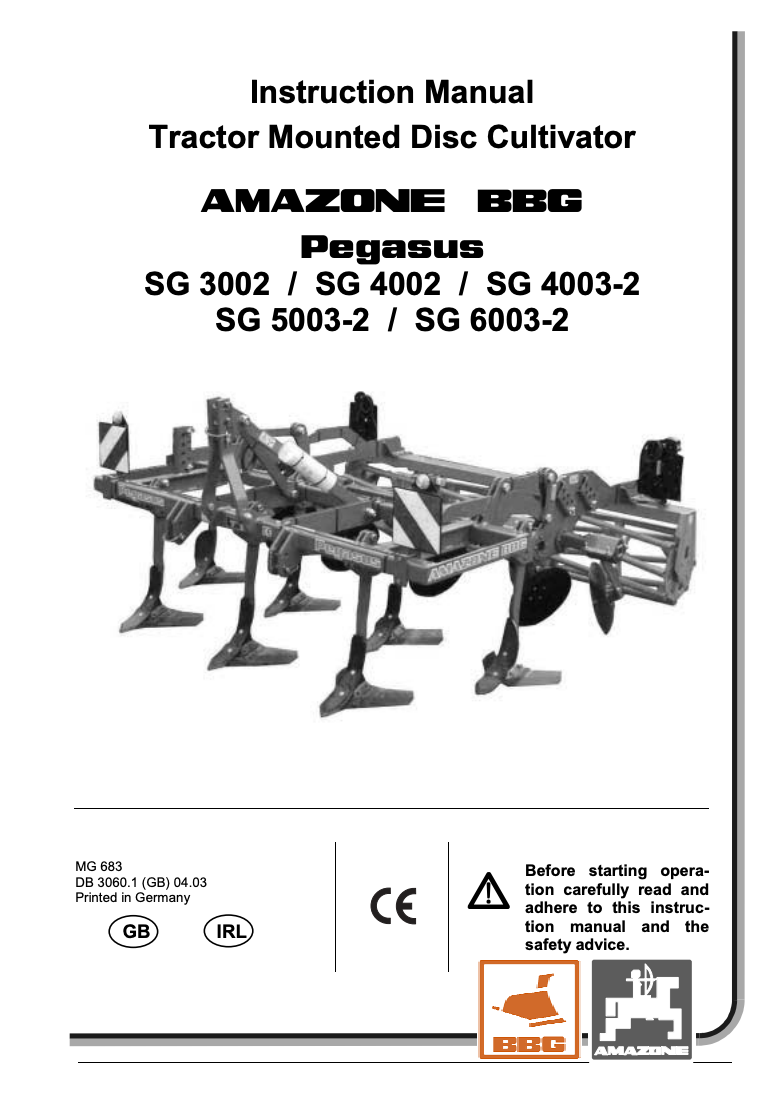

Amazone Pegasus SG Series Disc Cultivator Instruction Manual (SG 3002, 4002, 4003-2, 5003-2, 6003-2)

This comprehensive instruction manual covers the Amazone Pegasus SG Series Tractor Mounted Disc Cultivators, including models SG 3002, SG 4002, SG 4003-2, SG 5003-2, and SG 6003-2. It is an essential resource for operators, mechanics, and agricultural contractors using these powerful soil tillage machines.

The manual provides in-depth guidance on:

• Proper setup and mounting to the tractor's hydraulic system
• Calibrating working depths for winged tines and concave discs
• Safety procedures and warning systems
• Correct transport positioning for road use
• Routine maintenance, lubrication schedules, and hydraulic hose inspection
• Adjustments for working angle and depth using eccentric pins

This manual is intended for:

• Farmers and agricultural operators
• Workshop technicians and maintenance staff
• Contractors handling tillage and seedbed preparation

Covered equipment and accessories:

• Pegasus disc cultivators with rigid or foldable frames
• Optional equipment such as side discs and traffic light kits
• Hydraulic and shear pin safety systems

Specific models included:

• SG 3002
• SG 4002
• SG 4003-2
• SG 5003-2
• SG 6003-2

Key operating conditions and configurations are discussed, including:

• Tractor compatibility (Category II / III)
• Hydraulic requirements (230 bar, double-acting spool valve)
• Safe use on public roads with transport width limitations

This manual is ideal for ensuring optimal performance and safe operation of your Amazone disc cultivator, providing all the technical detail needed for everyday use, transport, and maintenance.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
