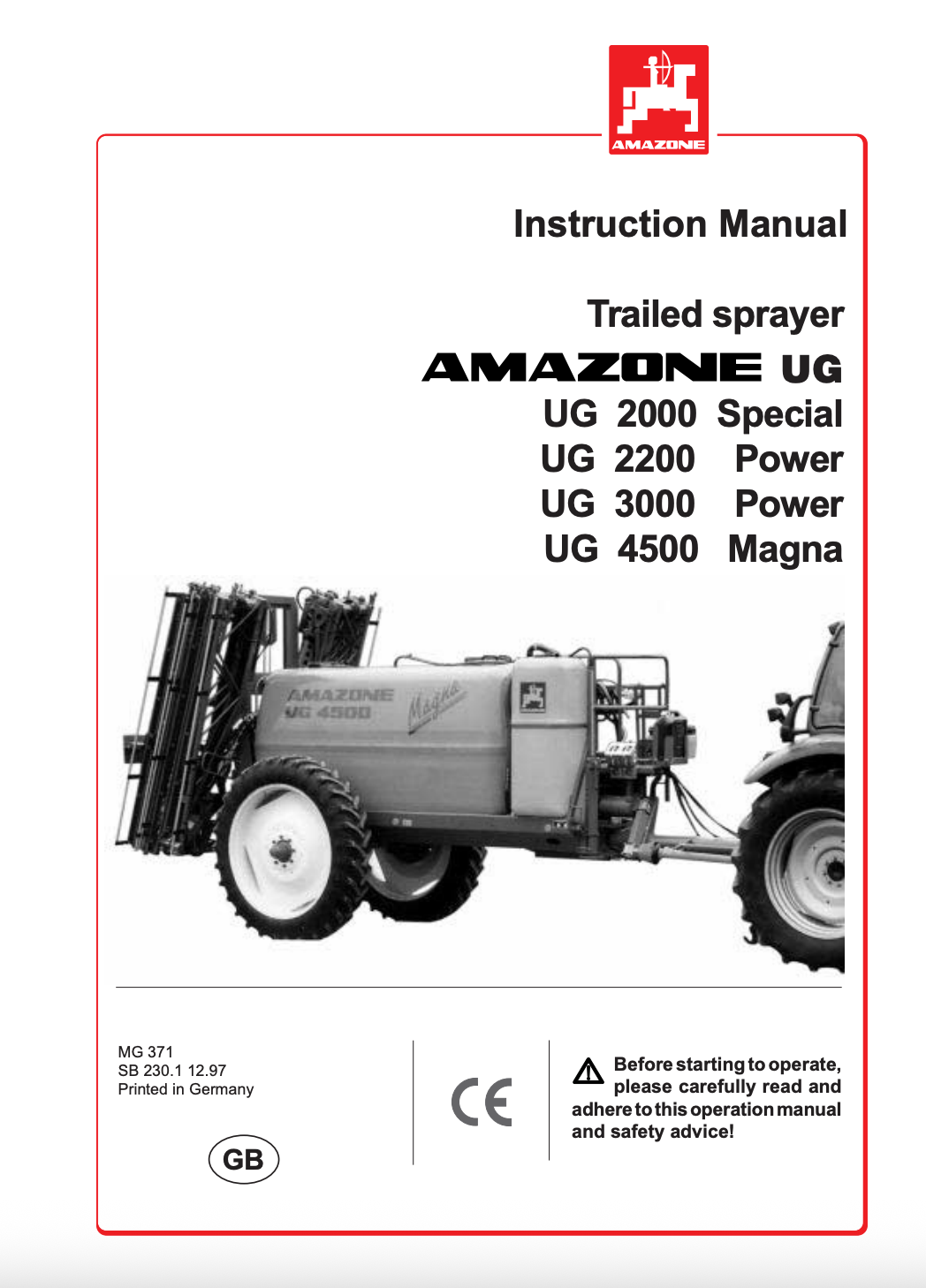

Amazone UG Trailed Field Sprayer Operator’s Manual – UG 2000, UG 2200, UG 3000, UG 4500 Magna

This detailed operator’s manual covers the Amazone UG range of trailed field sprayers, including:

• UG 2000 Special
• UG 2200 Power
• UG 3000 Power
• UG 4500 Magna

Designed for professional agricultural use, these high-capacity sprayers are equipped with advanced spraying technology and control systems. This manual is an essential resource for understanding, maintaining, and operating these Amazone machines safely and effectively.

What the manual covers:

• Setup and initial operation procedures
• Sprayer calibration and spray rate adjustment
• Routine maintenance and servicing
• Troubleshooting pump and control unit issues
• Safety procedures and accident prevention
• Mixing and applying spray cocktails
• Using optional accessories such as AMACHECK, AMATRON II, and Spraycontrol systems

Who it’s for: This manual is suitable for farmers, agricultural contractors, and machinery technicians operating Amazone UG trailed sprayers.

Models and specifications covered:

• UG 2000 Special – 2000 L tank, pump capacity 210 l/min
• UG 2200 Power – 2400 L tank, pump capacity up to 350 l/min
• UG 3000 Power – 3200 L tank, pump capacity up to 420 l/min
• UG 4500 Magna – 4750 L tank, highest capacity model

Sprayer boom types: Q-boom, H-boom, Super-S-boom, and L-boom (up to 36m width depending on model)

Optional equipment discussed: foam markers, electric switch boxes (SKS series), hydraulic drawbar steering, digital pressure displays, fertiliser nozzles, urea filters, and trail control systems.

Attachments and operating conditions: The manual includes configurations for various boom widths, pump capacities, control units (manual and remote), and braking systems (unbraked, hydraulic, air-assisted). It also advises on suitable operating conditions, such as slope limits and chemical compatibility.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
