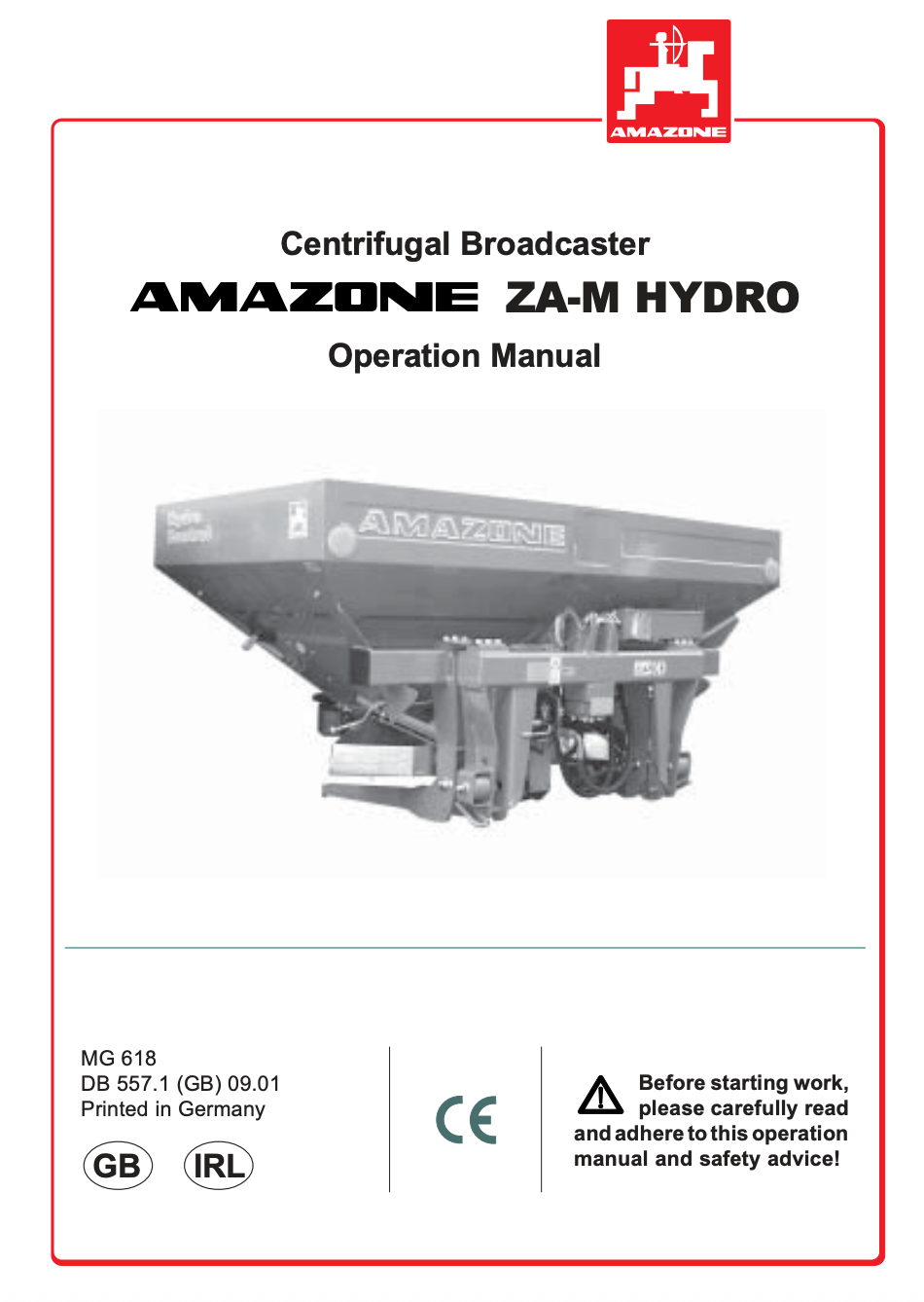

Amazone ZA-M HYDRO Centrifugal Broadcaster Operation Manual (MG 618)

Original Operating Manual for Amazone ZA-M HYDRO Centrifugal Broadcaster

This comprehensive manual covers the Amazone ZA-M HYDRO range of centrifugal broadcasters, designed for agricultural professionals who demand precision and performance in fertiliser application. Manufactured by AMAZONEN-WERKE H. Dreyer GmbH & Co. KG, this equipment is engineered for mounting on rear three-point linkages and is suitable for spreading dry, granular, prilled, or crystalline fertilisers, seeds, and slug pellets.

What This Manual Covers:

• Installation and fitting of the broadcaster to a tractor
• Hydraulic connections and AMASET remote control setup
• Spreading disc configuration and vane adjustment for 10–36m working widths
• Boundary and field-side spreading techniques
• Spread rate calibration, including shutter settings and use of test kits
• Filling, operation, cleaning, maintenance, and fault diagnosis
• Safety instructions and hazard pictograms
• Optional accessories and configurations

Who It’s For: This manual is essential for farmers, contractors, and agricultural mechanics responsible for operating or servicing Amazone ZA-M HYDRO fertiliser broadcasters.

Included Equipment Types and Variants:

• ZA-M maxiS HYDRO
• ZA-M profiS HYDRO

Hopper Capacities and Variations Covered:

• Standard hopper sizes: 1500L to 3000L with optional extensions (S 500, L 1000)

Accessories and Options Covered:

• Omnia-Set spreading discs (OS 10-12, OS 10-18, OS 20-28, OS 30-36)
• Swivelable guard tubes, calibration devices, transport kits, hopper covers
• Weighing systems, traffic light kits, and more

Operating Conditions: Suitable for use on slopes up to 20%. Specific hydraulic and oil flow requirements must be met. Includes spread rate recommendations based on fertiliser type and working width.

This manual offers critical insights into optimal operation, accurate setup, and safe use—ensuring even fertiliser distribution and extending equipment lifespan.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
