Amazone ZA-XW Perfect 502 Centrifugal Broadcaster Manual – Operation & Setup Guide

This digital manual covers the Amazone ZA-XW Perfect 502 centrifugal broadcaster – a high-performance spreader designed for dry fertilisers, seeds, and slug pellets.

Ideal for use in agricultural applications including vineyards, fruit farms, hop growing, and general arable farming, this manual is essential reading for anyone operating or servicing this machine.

What this manual is for:

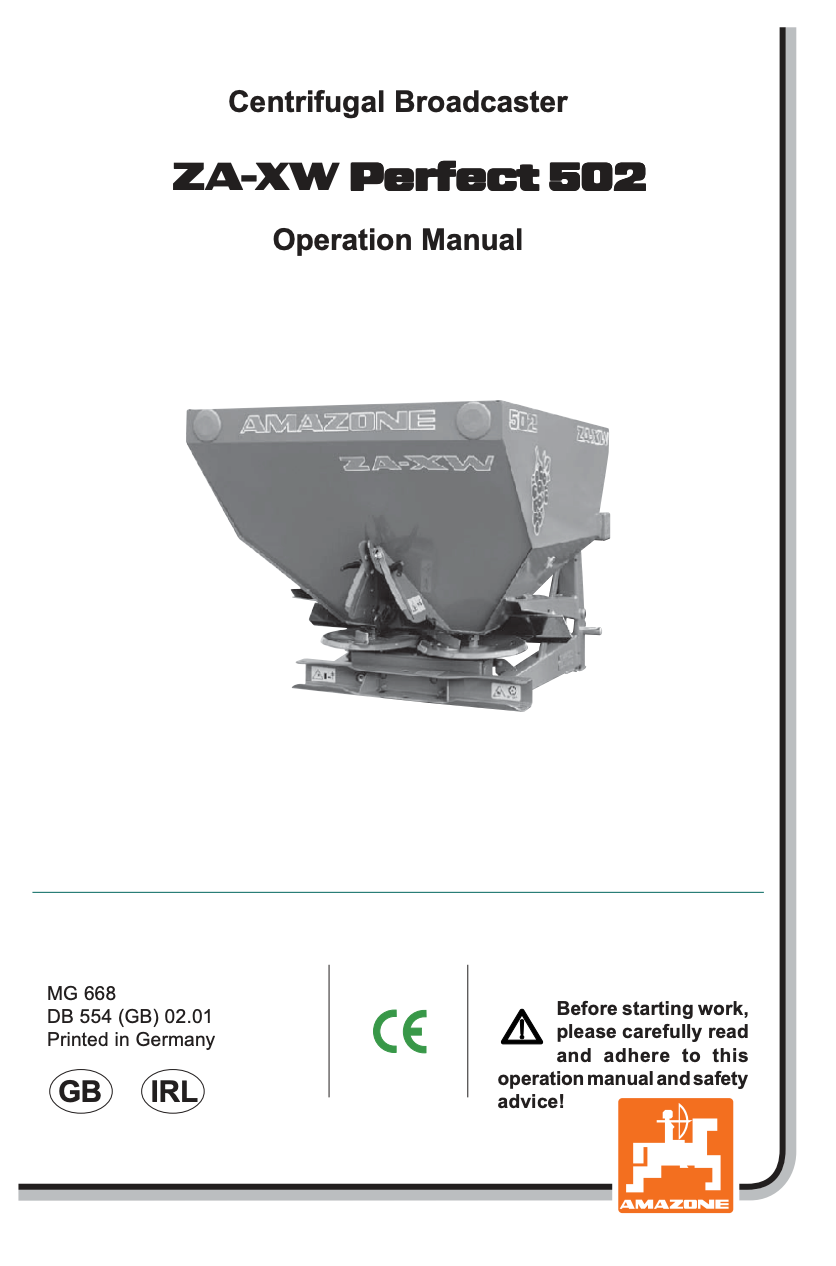

This is the official operation manual for the Amazone ZA-XW Perfect 502. The broadcaster is a tractor-mounted centrifugal spreader used for distributing dry, granular, prilled, or crystalline fertilisers, as well as seeds and slug pellets. It mounts via a three-point linkage and operates using a PTO shaft at 540 RPM.

What you will learn:

• Safe setup and initial installation of the spreader, including PTO shaft fitting and hydraulic connections
• Field calibration, setting fertiliser spread rates and working widths
• Using the "Omnia-Set" spreading discs for different fertiliser types and spreading widths
• Operation of boundary spreading systems including the "Tele-Quick" vane and spread deflector
• Maintenance procedures such as lubrication points, gearbox checks, and cleaning
• Troubleshooting common operational issues

Who this manual is for:
Farmers, agricultural contractors, and mechanics responsible for the setup, use, or servicing of the ZA-XW Perfect 502.

Accessories and options covered:

• Boundary spreading vane "Tele-Quick"
• Boundary spread deflector
• Rear light kit with warning plates
• Two-way valve unit
• PTO shaft with friction clutch
• Row spreading device for specialised crops

Supported model:
Amazone ZA-XW Perfect 502

Operating conditions discussed:
Usage on slopes (up to 20% gradient), adjusting for different fertiliser types, seasonal top dressing, and recommendations for safe road transport.

This is a scanned PDF copy of the original manual. It will be delivered instantly by email after purchase. No physical item will be shipped.
