Bamford C460 Disc Mower Spare Parts List

Download the Bamford C460 Disc Mower Spare Parts List in PDF format. This illustrated parts catalogue covers the Bamford C460 Disc Mower, providing exploded diagrams, original part numbers and component descriptions to help identify replacement parts.

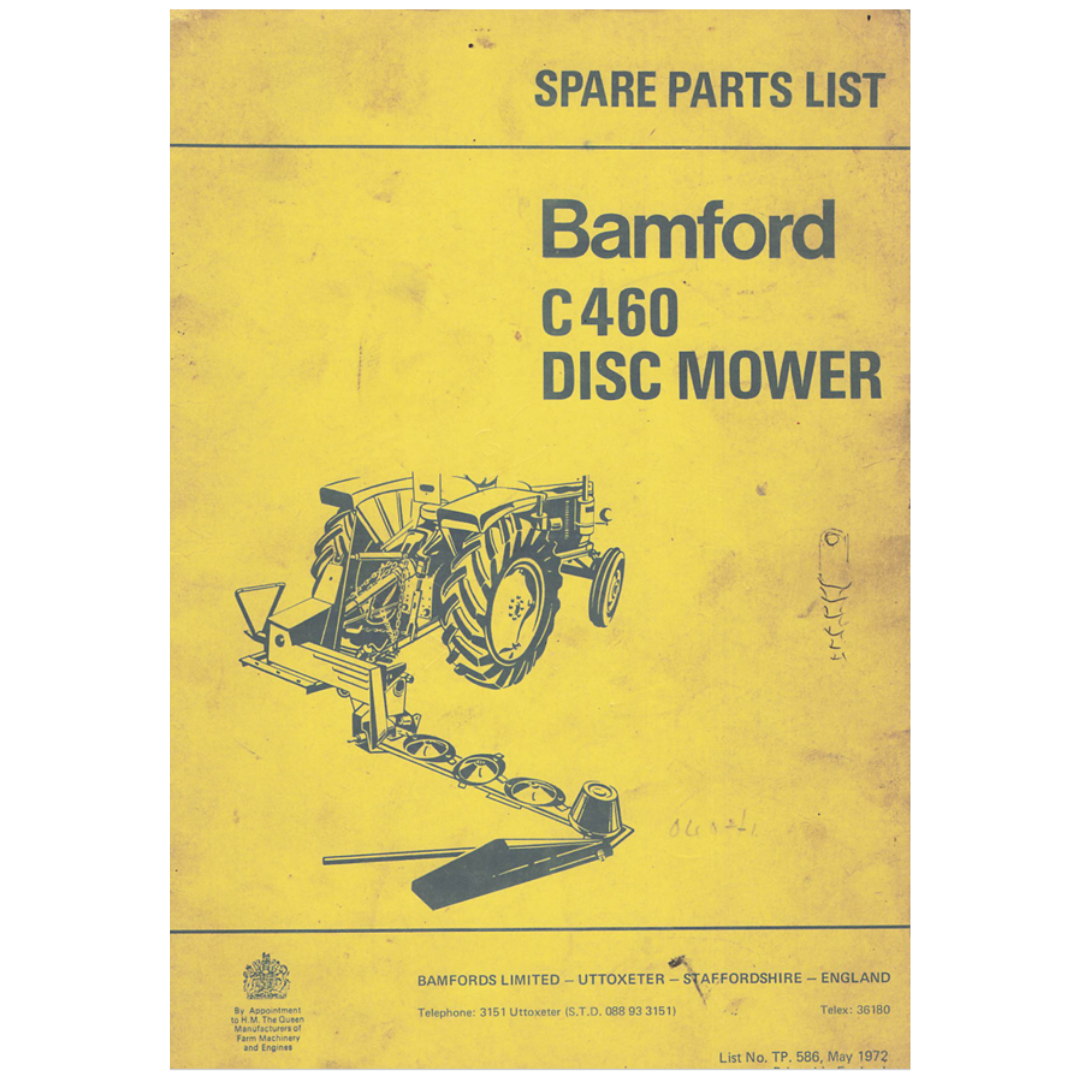

This is a 47-page PDF. The original publication is List No. TP. 586, May 1972, issued by Bamfords Limited of Uttoxeter, Staffordshire, England. Bamford C460 Disc mower spare p…

The catalogue contains detailed parts information across the mower's main mechanical assemblies and cutting components. The original instructions specifically advise using both the part number and description and the machine serial number when ordering spares, which is important because a number of components changed across different C460 serial-number ranges. Bamford C460 Disc mower spare p…

What's covered:

• Frame and guards
• Break-back and lift components
• Stabilisers
• PTO drive shaft assemblies
• Torque limiting clutch
• Main gearbox
• Transmission and V-belts
• Final gearbox
• Rotor gears
• Discs
• Cutter bar and gear case
• Shoes and swath board
• Stone deflectors
• Cutter bar screws and nuts
• Gasket sets
• Tools and transfers
• Cutter bar safety shields
• Inner swath board Bamford C460 Disc mower spare p…

The manual covers several PTO shaft variants according to machine serial number, including the arrangement fitted up to serial number 70.2500, another for machines from 72.0001 to 72.1000, and a later PTO shaft fitted from serial number 72.1001. Bamford C460 Disc mower spare p… Bamford C460 Disc mower spare p…

Detailed gearbox and transmission parts are included, with listings for bearings, gears, pulleys, seals, shafts, gaskets, V-belts and associated hardware. The transmission section also identifies components that differ according to serial number, making the catalogue particularly useful when identifying parts for an individual C460 mower. Bamford C460 Disc mower spare p…

The cutter-bar area is covered extensively, including discs, rotor gears, shoes, stone deflectors, gear-case components and cutter-bar fixings. The rotor gear listings distinguish between earlier and later parts, including pinions fitted up to serial number 71.2500 and replacements used from serial number 72.0001. Bamford C460 Disc mower spare p…

The catalogue also documents different cutter bar safety shield arrangements. One section covers the earlier shield used up to serial number 69.1500, while another covers the later safety shield from serial number 70.0001. Bamford C460 Disc mower spare p… Bamford C460 Disc mower spare p…

This Bamford C460 parts manual is useful for farmers, agricultural engineers, machinery owners and restorers who need to identify original components, compare serial-number-specific parts or find the correct part number for a Bamford C460 disc mower.

Please note: This product is a downloadable PDF spare parts list/parts catalogue only. It is not an operator's, workshop or repair manual, and no physical mower or replacement parts are supplied.
