Bamford C460 Disc Mower Spare Parts List

Download the Bamford C460 Disc Mower Spare Parts List in PDF format. This original-style illustrated parts catalogue covers the Bamford C460 Disc Mower, providing exploded diagrams, component descriptions and part numbers to help owners, farmers and agricultural engineers identify replacement parts.

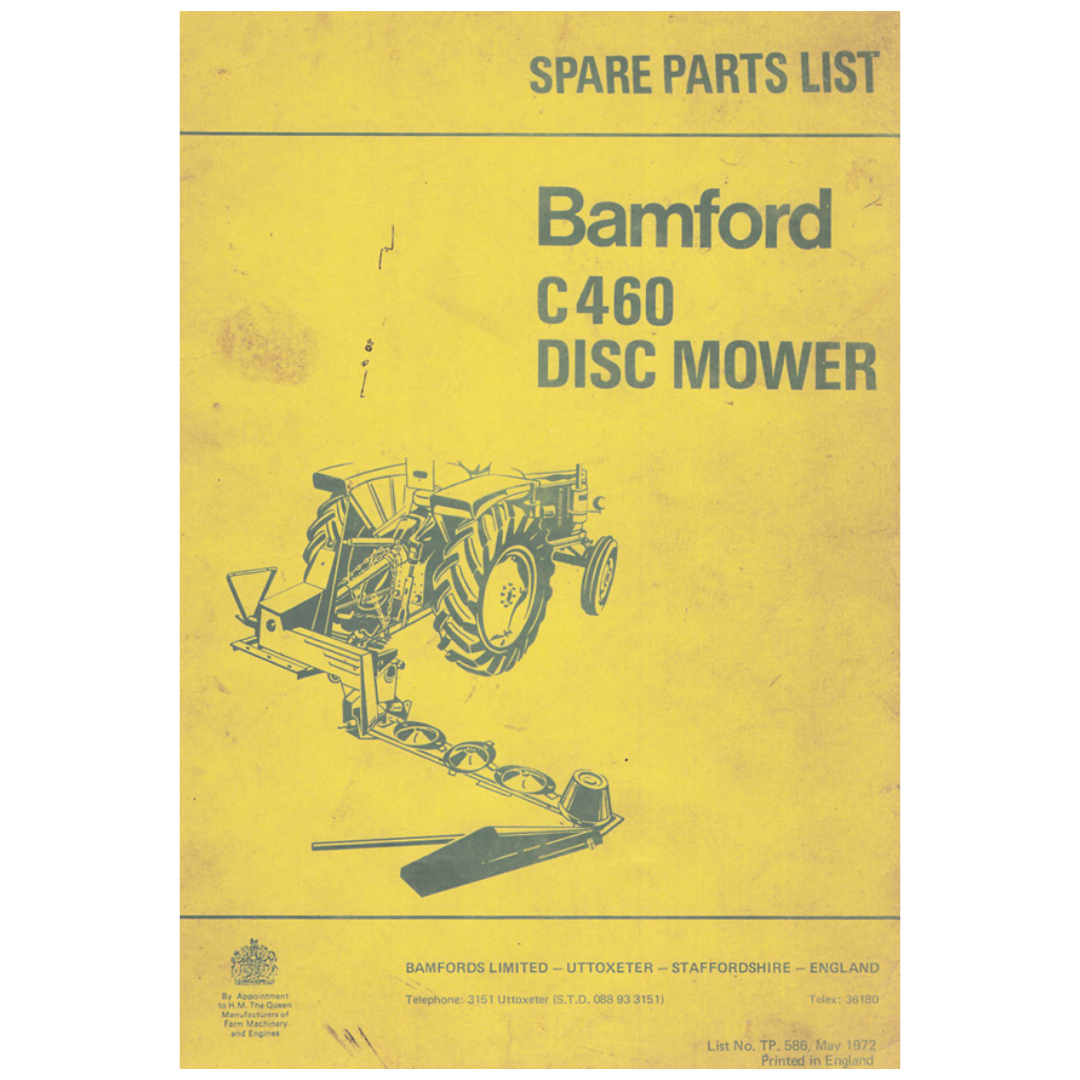

The document is a 45-page PDF. The front cover identifies it as the Bamford C460 Disc Mower Spare Parts List, List No. TP. 586, May 1972, produced by Bamfords Limited of Uttoxeter, Staffordshire, England. Bamford c460 Disc mower spare …

The contents cover the major mechanical assemblies of the C460, including the frame and guards, lift system, stabilisers, PTO drive shafts, torque limiting clutch, main and final gearboxes, transmission, rotor gears, discs, cutter bar, shoes, swath board and safety shields. Bamford c460 Disc mower spare …

What's covered:

• Frame and guards
• Break-back and lift components
• Stabilisers
• PTO drive shafts
• Torque limiting clutch
• Main gearbox
• Transmission and V-belts
• Final gearbox
• Rotor gears
• Cutting discs and twisted knives
• Cutter bar gear case
• Shoes and swath board
• Stone deflectors
• Cutter bar screws and nuts
• Gasket sets
• Tools and transfers
• Cutter bar safety shields
• Optional inner swath board
• Illustrated exploded parts diagrams
• Component descriptions and original part numbers
• Parts index

The catalogue contains important serial-number-specific parts information. For example, separate PTO shaft arrangements are listed for machines up to Serial No. 70.2500, from Serial No. 72.0001 to 72.1000, and from Serial No. 72.1001. The contents also identify different cutter bar safety shield sections for machines up to Serial No. 69.1500 and from Serial No. 70.0001. Bamford c460 Disc mower spare …

The disc assembly section provides detailed listings for the outer, second, first and third discs, including versions fitted with scrapers and twisted knives. It also identifies serial-number changes and replacement part numbers, making the catalogue particularly useful when determining the correct components for different C460 variants. Bamford c460 Disc mower spare …

Further sections cover the cutter bar gear case, including upper and lower gear case covers, bridles, wearing plates, seals and plugs, with applicability notes for different machine serial numbers. Bamford c460 Disc mower spare …

The shoes and swath board section includes inner and outer shoes, sole plates, swath boards and associated fittings, while a separate section covers stone deflectors and their wearing plates. Bamford c460 Disc mower spare … Bamford c460 Disc mower spare …

The manual also includes an optional inner swath board assembly and associated components. Bamford c460 Disc mower spare …

Customers should pay particular attention to the serial number of their machine when identifying components. The manual itself instructs users to quote both the part number and description and the machine serial number when ordering spares. Bamford c460 Disc mower spare …

This Bamford C460 parts manual is a useful replacement reference for anyone who has lost the original parts book, owns a used C460 mower without its documentation, or needs to identify individual components and original Bamford part numbers.

Please note: This product is a downloadable PDF spare parts list/parts catalogue. It is not an operator's manual or workshop repair manual, and no physical mower or replacement parts are supplied.
