Bamfords 422 Wizzler Mower Operator's Manual

Download the Bamfords 422 Wizzler Mower Operator's Manual in PDF format. Titled Working Instructions in the original document, this manual explains how to set up, attach, operate, adjust and carry out routine care on the tractor-mounted, PTO-driven Bamfords 422 Wizzler mower.

The English-language PDF contains 13 pages, including covers and unnumbered pages, with illustrated instructions throughout. It provides a useful replacement reference for farmers, owners and operators who have lost their original manual or purchased a used Wizzler without its operating instructions.

What’s covered:

• Initial setup and fitting the guard rail assembly
• Tractor attachment using Category 1 or Category 2 linkage arrangements
• Fitting the swath deflector
• PTO drive shaft attachment and moving into working position
• Checks before work, cutter alignment and linkage adjustments
• Mowing guidance, working speeds and guard rail extension operation
• Routine lubrication points and intervals
• Moving into transport position and detaching the mower
• Drive belt tension checks and adjustment
• Fitting cutting knives and maintaining drum balance
• Safety breakaway operation and spring adjustment
• Main drive shaft coupling, shear bolt replacement and cutting drum timing
• Operating safety precautions

These Bamfords 422 Wizzler working instructions cover practical operation and routine maintenance, with specific procedures for knife fitting and shear bolt replacement. They do not provide a comprehensive workshop overhaul guide.

Model coverage and identification: The cover identifies the Bamfords 422 Wizzler. The main drive shaft coupling section explicitly distinguishes 1966 and 1967 models, including differences in shear bolt washers and locking arrangements. No serial-number range is stated; check these details against your machine.

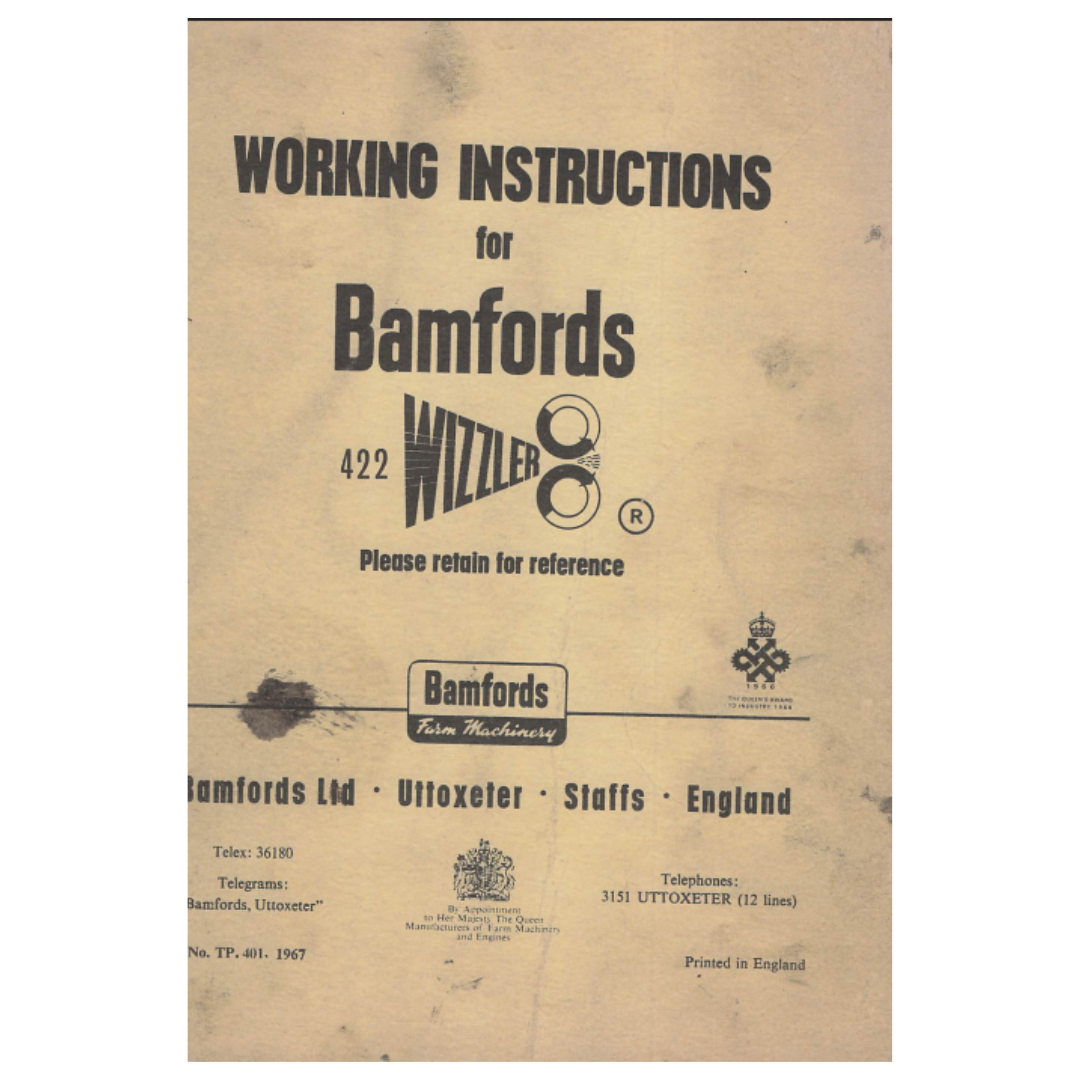

Published by Bamfords Ltd, Uttoxeter, England, the cover carries No. TP.401, 1967. The publication date identifies this edition; it does not establish the mower’s full production-year range. C:/Users/Bowen/AppData/Roaming/PFU/ScanSnap Home/ScanSnap Home/Bamfords 422 wizzler working instructions 1967.pdf

This product is a downloadable PDF manual, not a physical mower or replacement parts.
