Vicon Jumbo-Buster CP 240/300/360 Chisel Plough Instruction and Parts Manual

Download the Vicon Jumbo-Buster CP 240/300/360 Chisel Plough Instruction and Parts Manual in PDF format, covering operation, adjustment, maintenance and illustrated replacement parts information for the CP 240, CP 300 and CP 360 models.

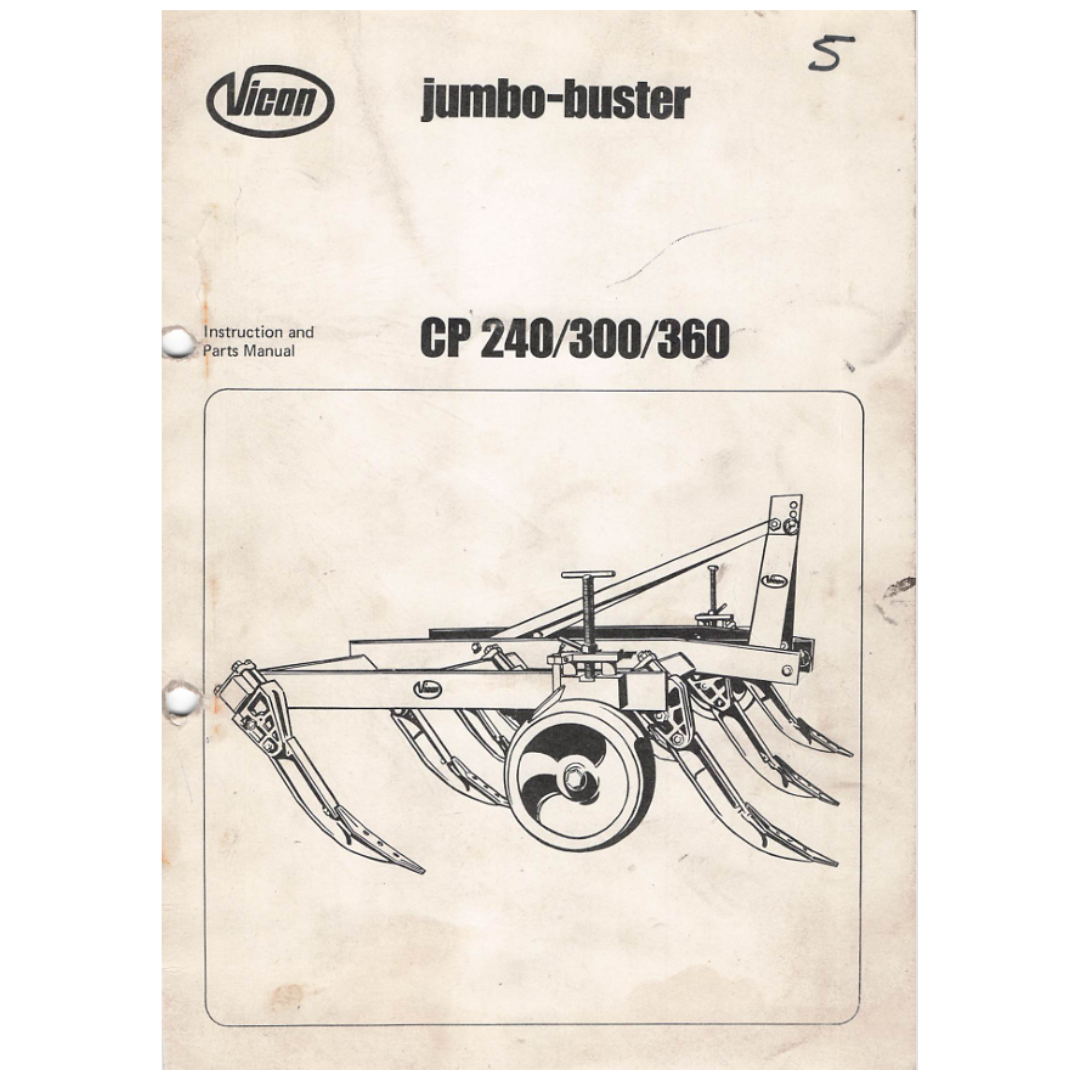

The front cover identifies this document as the Vicon Jumbo-Buster CP 240/300/360 Instruction and Parts Manual. Vicon jumbo buster CP 240 300 3… The manual describes the Jumbo-Buster as a true chisel plough designed for deep or shallow cultivation, including stubble cultivation, plough replacement work and sub-soiling when fitted with the special Sword tines. Vicon jumbo buster CP 240 300 3…

This is a 16-page PDF manual combining operating instructions with a detailed illustrated parts section, making it useful both for setting up and using the machine and for identifying replacement components.

Models covered:

• Vicon Jumbo-Buster CP 240 – 2.40 m / 8 ft
• Vicon Jumbo-Buster CP 300 – 3.00 m / 10 ft
• Vicon Jumbo-Buster CP 360 – 3.60 m / 12 ft

The technical information distinguishes the three sizes by weight, overall dimensions, number of tines and tractor power requirements. Depending on model, the manual specifies configurations from 5 to 13 tines and power requirements ranging from 55 to 125 hp. Vicon jumbo buster CP 240 300 3…

What's covered:

• Safety precautions
• Jumbo-Buster introduction and applications
• Technical details and specifications
• Mounting the chisel plough to the tractor
• Category II and Category III attachment information
• Wheel and working-depth adjustment
• CP 240, CP 300 and CP 360 tine arrangements
• Number of tines and correct tine spacing
• Operating instructions
• First and second pass working depths
• Pan breaking
• Sub-soiling with Sword tines
• Shear pin protection
• Routine maintenance
• Tine share inspection and replacement
• Wheel bearing maintenance
• Available accessories
• Main frame parts diagrams
• Standard wheel equipment
• Optional pneumatic wheel equipment
• Tine and spring-back assemblies
• Illustrated replacement parts and component numbers

The mounting instructions explain that the Jumbo-Buster can be used with wheeled or crawler tractors. The manual states that all models have a Cat II double-clevis tractor attachment, while Cat III is standard on the 3.60 m / 12 ft model. Vicon jumbo buster CP 240 300 3…

Tine configuration is covered in detail. The CP 240 can use 5, 7 or 9 tines, the CP 300 can use 9 or 11 tines, and the CP 360 can use 11 or 13 tines, with the corresponding tine spacings specified in the manual. Vicon jumbo buster CP 240 300 3…

Operating guidance includes recommended working depths and procedures for successive passes. The manual advises an initial working depth of approximately 12–15 cm (5–6 inches) on heavy soils, with a later second pass reaching 25–28 cm (10–11 inches) where conditions allow. Vicon jumbo buster CP 240 300 3… It also covers sub-soiling to 56 cm (22 inches) when the machine is fitted with Sword tines. Vicon jumbo buster CP 240 300 3…

Routine maintenance guidance covers tine shares, wheel bearings, corrosion protection and checking tine clamp studs and pivot bolts. Accessories listed include heavy-duty pneumatic depth wheels, Sword sub-soil tines, a spring-back safety tine attachment and Delta shares. Vicon jumbo buster CP 240 300 3…

The second half of the manual contains illustrated parts diagrams and component references. Separate diagrams are provided for the CP 240/300 main frame, Vicon jumbo buster CP 240 300 3… CP 240/300 standard wheel equipment, Vicon jumbo buster CP 240 300 3… CP 360 main frame, Vicon jumbo buster CP 240 300 3… and CP 360 standard wheel equipment. Vicon jumbo buster CP 240 300 3… Further exploded diagrams cover optional pneumatic wheel equipment and tine assemblies.

This Vicon Jumbo-Buster manual is particularly useful for owners and operators who have acquired a used CP 240, CP 300 or CP 360 without its original documentation and need operating, adjustment, maintenance or parts identification information.

Models: CP 240, CP 300, CP 360
Equipment type: Chisel Plough
Document type: Instruction and Parts Manual
PDF length: 16 pages
Language: English

This product is supplied as a downloadable PDF manual and is not a physical handbook, chisel plough or replacement part.
