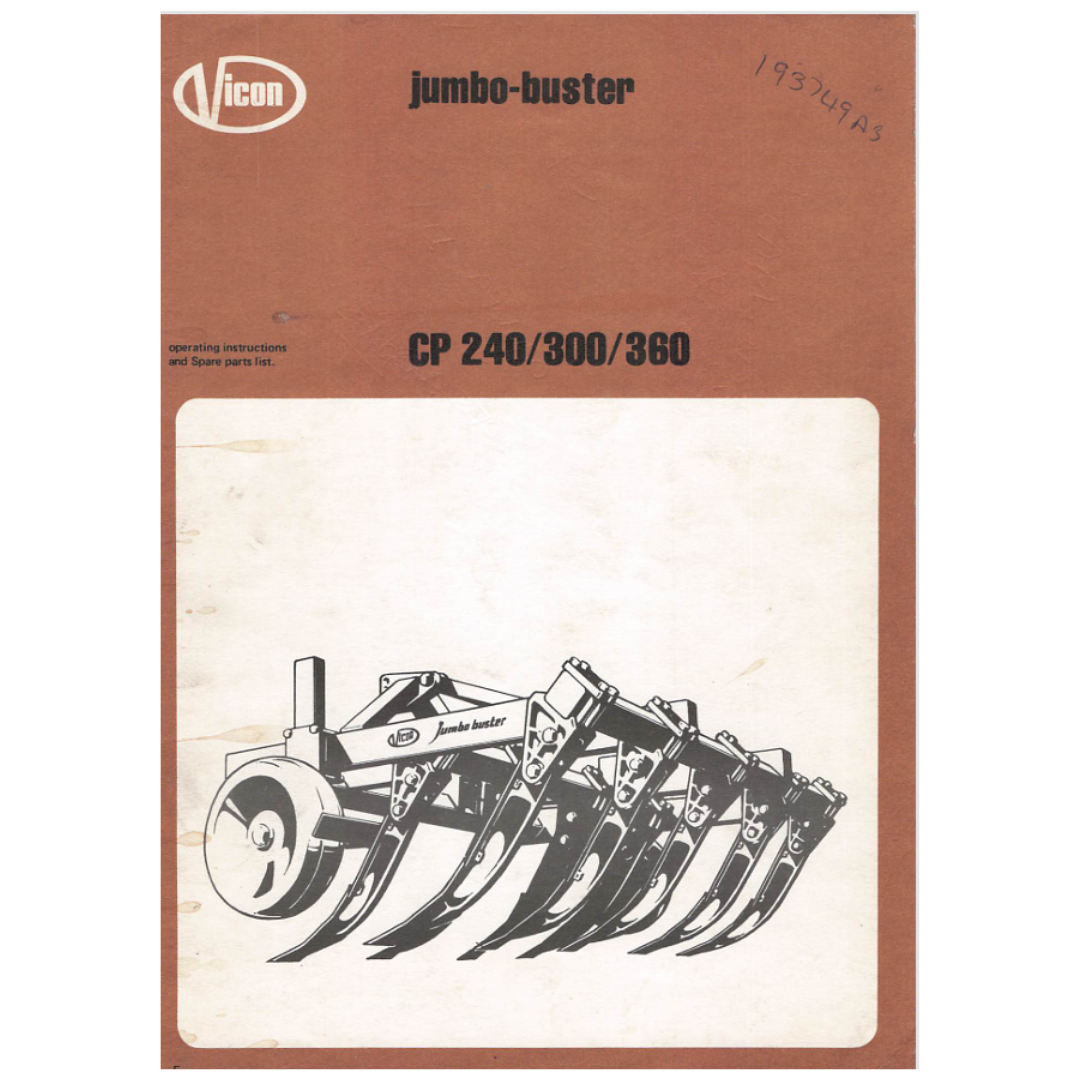

Vicon Jumbo Buster CP 240 / 300 / 360 Chisel Plough Operating Instructions & Spare Parts List

Download the Vicon Jumbo Buster CP 240, CP 300 and CP 360 Chisel Plough Operating Instructions & Spare Parts List in PDF format, covering setup, operation, adjustment, routine maintenance and spare parts identification.

The manual describes the Vicon Jumbo Buster as a true chisel plough designed for both deep and shallow cultivation. Applications described include stubble cultivation, plough-replacement work and sub-soiling when fitted with the special “Sword” tines. Vicon jumbo buster cp 240 300 3…

This is a 12-page PDF manual covering three working-width models:

• CP 240 / 2.40 m / 8 ft
• CP 300 / 3.00 m / 10 ft
• CP 360 / 3.60 m / 12 ft

The technical details give model-specific weights, overall widths, tine configurations and tractor power requirements. Depending on model, the Jumbo Buster can be fitted with 5 to 13 tines, with stated power requirements ranging from 55–75 hp for the 8 ft model up to 99–125 hp for the 12 ft model. Vicon jumbo buster cp 240 300 3…

What's covered:

• Introduction to the Vicon Jumbo Buster chisel plough
• Technical details for 8 ft, 10 ft and 12 ft models
• Mounting to wheeled and crawler tractors
• Category II and Category III tractor linkage information
• Hydraulic and top-link setup
• Front tractor ballast guidance
• Depth-wheel adjustment
• Tine numbers and correct tine spacing
• Shear-pin protection
• First and second-pass cultivation guidance
• Working-depth recommendations
• Pan breaking
• Sub-soiling with “Sword” tines
• Tine share maintenance
• Wheel-bearing maintenance
• Corrosion protection after use
• Optional accessories
• Illustrated spare parts diagrams
• Replacement part numbers for frame, wheel, tine and attachment components

The manual gives precise tine configurations for each model. The 2.40 m CP 240 can use 5, 7 or 9 tines; the 3.00 m CP 300 can use 9 or 11 tines; and the 3.60 m CP 360 can use 11 or 13 tines. It also provides the appropriate tine spacing for each configuration and states that tines must not be fitted to the front beam. Vicon jumbo buster cp 240 300 3…

Operating guidance recommends an initial cultivation depth of approximately 12–15 cm (5–6 inches) on heavy soils, with a later diagonal second pass reaching approximately 25–28 cm (10–11 inches) where required. Vicon jumbo buster cp 240 300 3… For deeper work, the manual states that the Jumbo Buster can be used for sub-soiling to 56 cm (22 inches) when fitted with “Sword” tines. Vicon jumbo buster cp 240 300 3…

Routine maintenance instructions include checking and replacing or turning worn tine shares, checking the grease-packed wheel bearings at least twice per season and protecting bright metal parts against corrosion after use. Vicon jumbo buster cp 240 300 3…

The manual also lists accessories including a Category III linkage conversion kit for the 8 ft and 10 ft models, pneumatic depth wheels, “Sword” sub-soil tines and a spring-back safety tine attachment for rocky conditions. Vicon jumbo buster cp 240 300 3…

Pages 8–11 contain illustrated exploded spare-parts diagrams with Vicon part numbers, useful when identifying replacement components for the frame, linkage, wheels, tines and related assemblies. Vicon jumbo buster cp 240 300 3…

This Vicon Jumbo Buster manual is useful for farmers, machinery owners, operators and restorers who need replacement operating instructions or spare parts information for a CP 240, CP 300 or CP 360 chisel plough.

This product is supplied as a downloadable PDF manual and is not a physical handbook, chisel plough or replacement part.
